W-LIFE medical machine redesign
#Industrial Design #Portfolio / Client: WLIFE - CleanColon division / Year: 2011 / Clients website: http://www.w-life.it/ / Commision: Redesign of the Model 004 hydrocolontherapy machine / Skills applied: market research, concept development, sketching, 3D models, pannel graphics design, assembly & basic engineering, color study and proposal, assistance during prototyping phase

Redesign of the WLife Model 005 machine. The main function of the previous machine was kept untouched while the aesthetical, ergonomical and  functional aspects where completely redesigned.

W-LIFE medical machine redesign
3/4 view
W-LIFE medical machine redesign

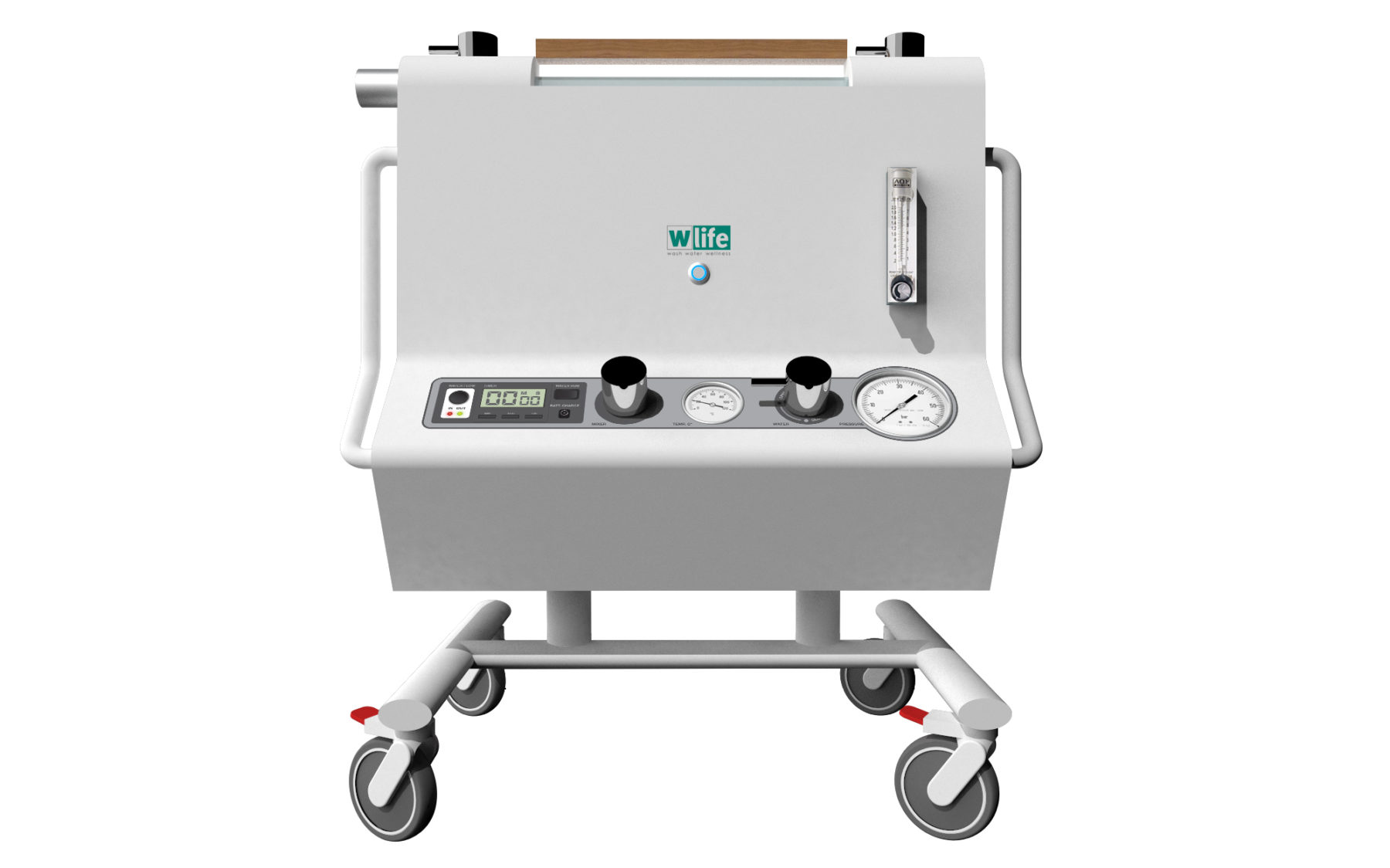

front view
W-LIFE medical machine redesign

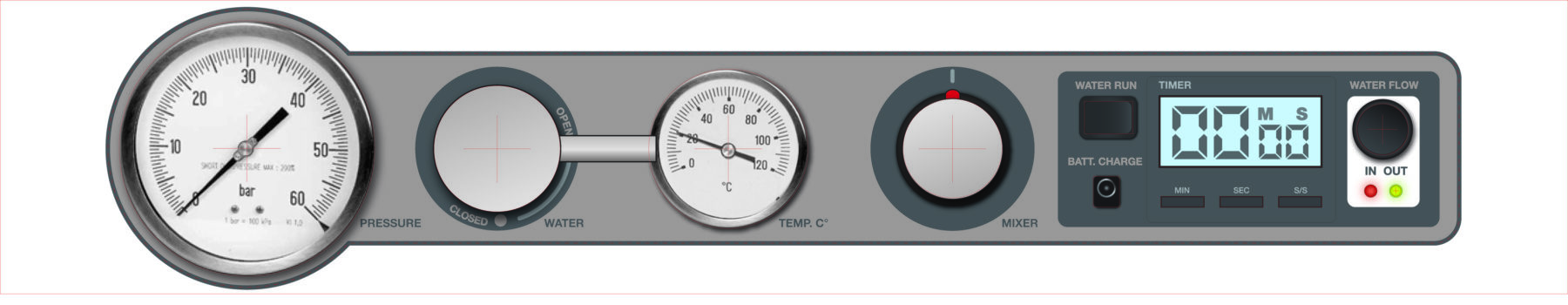

command pannel graphics
W-LIFE medical machine redesign
dials graphics proposal
W-LIFE medical machine redesign
accessory proposal
W-LIFE medical machine redesign
User interaction study diagram
W-LIFE medical machine redesign
3d CAD work in progress file
W-LIFE medical machine redesign
prototype
W-LIFE medical machine redesign
contextualization renderings

BACKNEXT
W-LIFE medical machine redesign
#Industrial Design #Portfolio

Redesign of the WLife Model 005 machine. The main function of the previous machine was kept untouched while the aesthetical, ergonomical and  functional aspects where completely redesigned.


Client: WLIFE - CleanColon division
Year: 2011
Clients website: http://www.w-life.it/
Commision: Redesign of the Model 004 hydrocolontherapy machine
Skills applied: market research, concept development, sketching, 3D models, pannel graphics design, assembly & basic engineering, color study and proposal, assistance during prototyping phase
